README

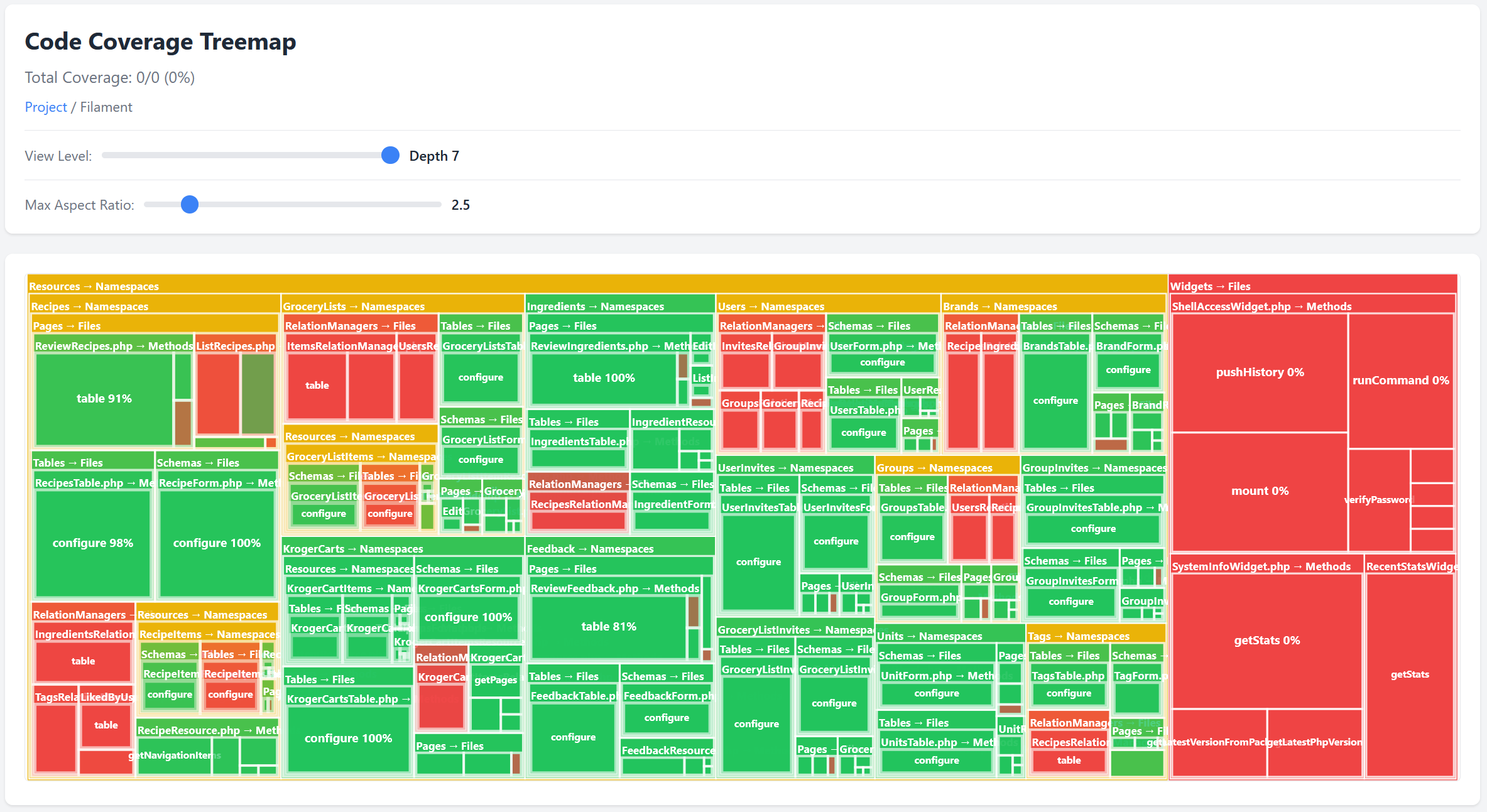

A PHPUnit extension that generates an interactive squarified treemap visualization of code coverage.

Installation

composer require --dev michael4d45/coverage-treemap

Configuration

Add the extension to your phpunit.xml:

<extensions>
    <bootstrap class="CoverageTreemap\Extension">
        <parameter name="outputDirectory" value="reports/coverage-treemap" />
        <parameter name="defaultNamespace" value="App" />
    </bootstrap>
</extensions>

Configuration Parameters

• outputDirectory (optional): Directory where the treemap HTML report will be generated. Defaults to reports/coverage-treemap.
• defaultNamespace (optional): Default namespace prefix to use when organizing the treemap. Defaults to App.

The extension automatically reads source directories from your <source><include> configuration and excluded directories from <source><exclude>.

Usage

Run PHPUnit with coverage:

phpunit --coverage
# or
vendor/bin/phpunit --coverage

After tests complete, open reports/coverage-treemap/index.html in your browser.

Requirements

• PHP 8.3+
• PHPUnit 11+
• Code coverage driver (PCOV, Xdebug, etc.)

License

This project is open-sourced software licensed under the MIT License.
